Sample Wizard

← Flasher · MIT credits

Getting started

Adds Wizard as machine 7, keeping the six stock machines. Includes the sampler playback modes, sample browser, Slice editor and Slice varispeed. This integration profile includes the compatible Supermodel features, all 15 machines and ChordKeys, without requiring Model-TG. Main and the previous test pages are unchanged. No samples or firmware are supplied.

  1. Choose MACHINES → Wizard (machine 7).
  2. Device Config → Transfer → SMP: use Elektron Transfer to upload your own samples. Return Transfer to CYC before upgrading firmware.
  3. FUNC + MACHINES: open the browser and choose a sample.
  4. SETTINGS + MACHINES: choose the playback mode. SETTINGS + PUNCH: options for the selected mode.
  5. Slice mode: notes choose the slice; PITCH changes speed/pitch without moving that slice.
  6. Slice editor: TRIG 1–16 selects/plays slices; FUNC accesses slices 17–32. Knobs 1/2 move markers; FUNC + those knobs snaps to zero crossings; knob 3 zooms.
  7. Slice editor: DATA divides; FUNC + DATA deletes a marker; PUNCH toggles tap chopping.

Hardware check: use a fresh project, select Wizard on one track, upload a short sample and check notes, Slice/PITCH, then switch that track back to a stock machine. This release has passed emulation checks; hardware verification is pending.

Premiers pas

Ajoute Wizard comme machine 7 en conservant les six machines stock. Modes sampler, navigateur de samples, éditeur de slices et Slice varispeed inclus. Ce profil intègre les fonctions Supermodel compatibles, les 15 machines et ChordKeys, sans imposer Model-TG. Main et les tests précédents restent inchangés. Aucun sample ni firmware fourni.

  1. MACHINES → Wizard (machine 7).
  2. Device Config → Transfer → SMP : envoyer vos samples avec Elektron Transfer. Revenir à CYC avant une mise à jour du firmware.
  3. FUNC + MACHINES : ouvrir le navigateur et choisir un sample.
  4. SETTINGS + MACHINES : mode de lecture. SETTINGS + PUNCH : options du mode.
  5. Mode Slice : les notes choisissent la tranche ; PITCH change vitesse/hauteur sans déplacer cette tranche.
  6. Éditeur : TRIG 1–16 sélectionne/joue ; FUNC accède aux tranches 17–32. Potards 1/2 : marqueurs ; FUNC + ces potards : passages par zéro ; potard 3 : zoom.
  7. Éditeur : DATA divise ; FUNC + DATA efface un marqueur ; PUNCH active/désactive le découpage au tap.

Premier test matériel : projet neuf, Wizard sur une piste, sample court, notes puis Slice/PITCH ; revenir ensuite à une machine stock. Preuves émulation réussies ; validation matérielle en attente.

Included in this selectable test

Six stock voices; Wizard (7); five Syntakt voices (8–12); MACRO (13); corrected ACID (14); WAVE (15). Also: ChordKeys, Second LFO, Sequence Genie, SCRAMBLE, slides, Scale Lock, latching mute, trig preview, arpeggiator, trig hold, extended tempo, Control All Config, browser/display improvements, six-channel USB and MIDI out/thru.

WAVE is silent without wavetables. Wavetable converter. Wizard needs your samples, transferred using the SMP setting described above.

The standalone sampler was hardware-tested; these selected combinations is experimental. Check startup, one short sample, Slice varispeed, changing to stock and other machines, both LFOs, Sequence Genie, SCRAMBLE, and ChordKeys. Please report which action failed if anything freezes.

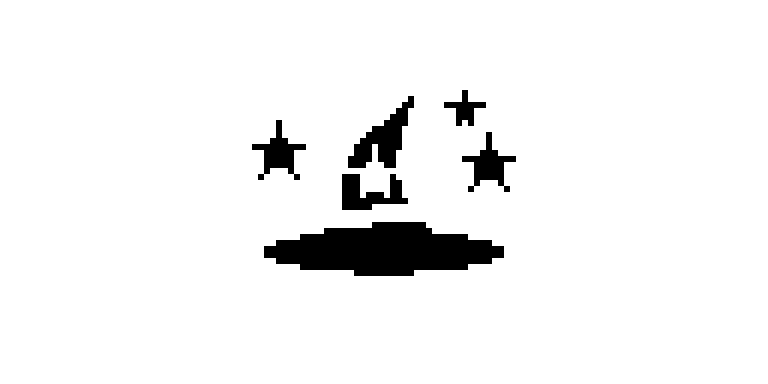

Native emulation: upright wizard hat with five-point stars

Options du test

Six machines stock ; Wizard (7) ; cinq Syntakt (8–12) ; MACRO (13) ; ACID corrigée (14) ; WAVE (15). ChordKeys, Second LFO, Sequence Genie, SCRAMBLE, slides, Scale Lock, mute verrouillé, préécoute, arpégiateur, trig hold, tempo étendu, Control All Config, améliorations navigateur/affichage, USB six canaux et MIDI out/thru.

WAVE reste muette sans tables. Convertisseur de tables d'ondes. Wizard exige vos samples, transférés en SMP comme indiqué plus haut.

Sampler autonome vérifié sur matériel ; profil combiné expérimental. Vérifier démarrage, sample court, Slice varispeed, changements de machine, LFO, Genie, SCRAMBLE et ChordKeys.
